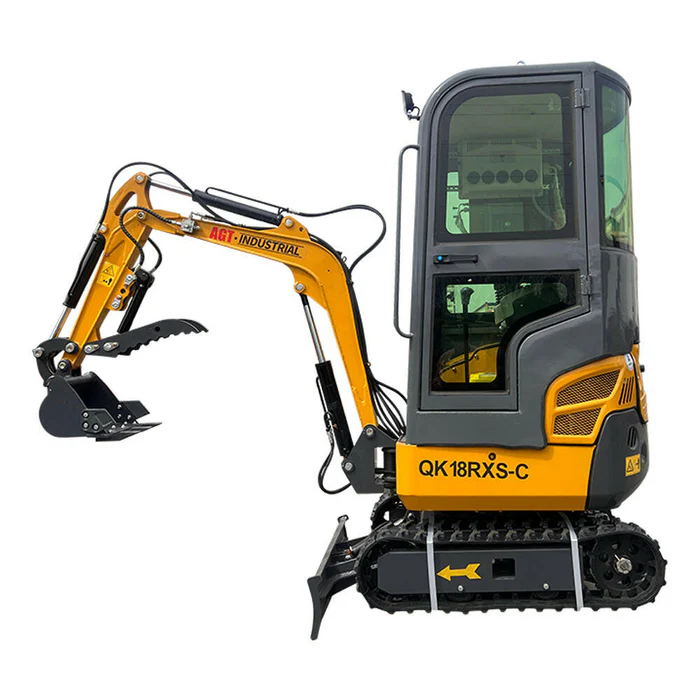

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT’s lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. With air conditioning, side swing and enclosed cab: Give you a comfortable work experience while you work. The cab keeps out the dust. Technical Data: Operation Weight: 1.08 Ton Engine: Rato Max Angle: 30 Degree Engine: Brand: Rato Model: R420 Type: Single-cylinder gasoline engine Power Output: 8.5 kW (approximately 11.4 HP) Maximum Speed: 3,600 RPM Fuel Type: Gasoline (#92) Performance: Operating Weight: 1.08 tons (980 kg) Maximum Digging Depth: 1,693 mm (5.56 feet) Maximum Digging Height: 2,560 mm (8.4 feet) Maximum Loading Height: 1,800 mm (5.91 feet) Minimum Rotation Radius: 3,060 mm (10.04 feet) Travel Speed: 0-1.8 km/h Climbing Ability: 15° Dimensions: Overall Length: 2,925 mm Overall Width: 958 mm Overall Height: 2,422 mm Hydraulic System: Main Pump Type: GP510803 Rated Set Pressure: 25 MPa Maximum Flow Rate: 21.6 L/min Multi-Circuit Valve: 4 mechanical + 4 hydraulic Rotary Hydraulic Motor Type: BM2-315 Traveling Hydraulic Motor Type: BM6-315 Additional Features: Cabin: Enclosed with air conditioning Side Swing: 30° angle Bucket Capacity: 0.03 m³ Track Width: 180 mm (7 inches) Attachments: Hydraulic thumb, push blade Lighting: LED work lights Operator Controls: Real pilot controls Additional Features: Auxiliary hydraulics, windshield wiper Specific Data： Operation Weight 980kg Engine RATO Travel speed low/high (km/h) 0-1.8 Capacity of bucket 0.03 m³  Max Digging Depth 1693mm Max Digging Height 2560mm Max Load Height 1800mm Min Rotation Radius 3060mm Max Angle of Climb 15° Side Swing Angle 30°   Hydraulic System: Total length  2925mm Overall width  958mm Total Height  2422mm Maximum speed (rpm)  3600 Rated set pressure (Mpa)  25 Maximum power  8.5 Main pump type  GP510803 With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT’s lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. With air conditioning, side swing and enclosed cab: Give you a comfortable work experience while you work. The cab keeps out the dust. Technical Data: Operation Weight: 1.08 Ton Engine: Rato Max Angle: 30 Degree Engine: Brand: Rato Model: R420 Type: Single-cylinder gasoline engine Power Output: 8.5 kW (approximately 11.4 HP) Maximum Speed: 3,600 RPM Fuel Type: Gasoline (#92) Performance: Operating Weight: 1.08 tons (980 kg) Maximum Digging Depth: 1,693 mm (5.56 feet) Maximum Digging Height: 2,560 mm (8.4 feet) Maximum Loading Height: 1,800 mm (5.91 feet) Minimum Rotation Radius: 3,060 mm (10.04 feet) Travel Speed: 0-1.8 km/h Climbing Ability: 15° Dimensions: Overall Length: 2,925 mm Overall Width: 958 mm Overall Height: 2,422 mm Hydraulic System: Main Pump Type: GP510803 Rated Set Pressure: 25 MPa Maximum Flow Rate: 21.6 L/min Multi-Circuit Valve: 4 mechanical + 4 hydraulic Rotary Hydraulic Motor Type: BM2-315 Traveling Hydraulic Motor Type: BM6-315 Additional Features: Cabin: Enclosed with air conditioning Side Swing: 30° angle Bucket Capacity: 0.03 m³ Track Width: 180 mm (7 inches) Attachments: Hydraulic thumb, push blade Lighting: LED work lights Operator Controls: Real pilot controls Additional Features: Auxiliary hydraulics, windshield wiper Specific Data： Operation Weight 980kg Engine RATO Travel speed low/high (km/h) 0-1.8 Capacity of bucket 0.03 m³  Max Digging Depth 1693mm Max Digging Height 2560mm Max Load Height 1800mm Min Rotation Radius 3060mm Max Angle of Climb 15° Side Swing Angle 30°   Hydraulic System: Total length  2925mm Overall width  958mm Total Height  2422mm Maximum speed (rpm)  3600 Rated set pressure (Mpa)  25 Maximum power  8.5 Main pump type  GP510803
